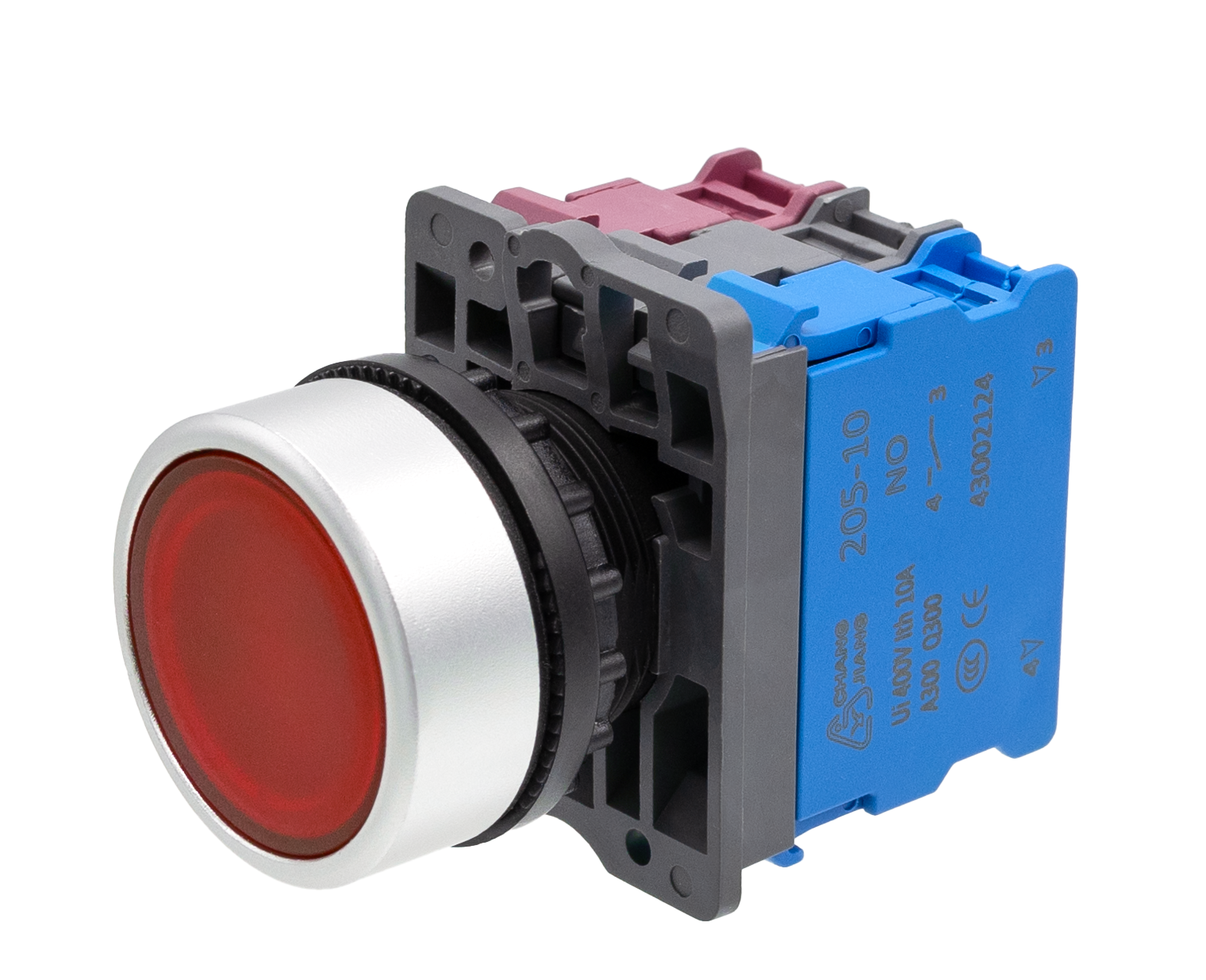

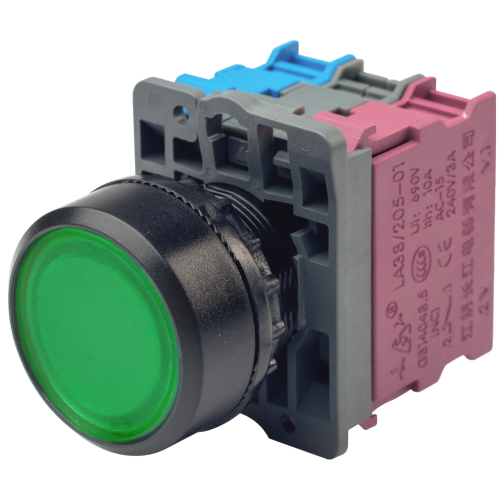

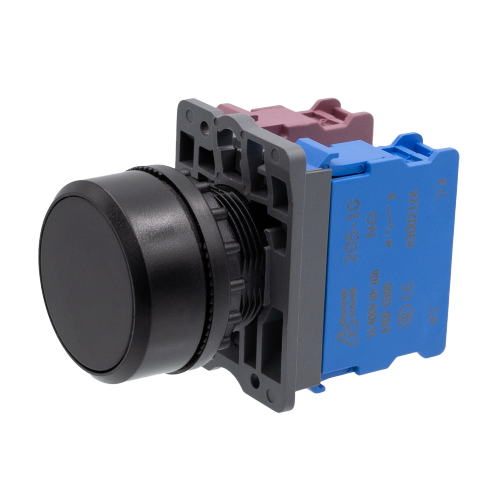

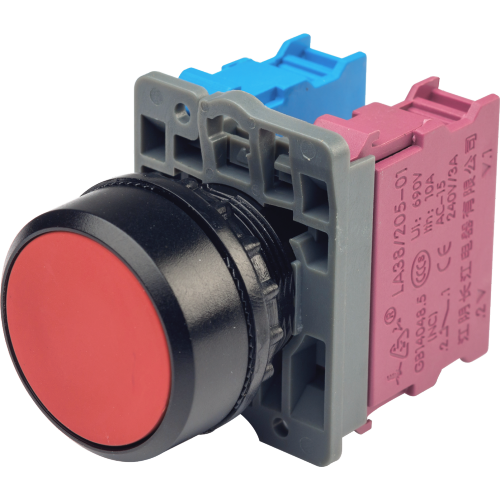

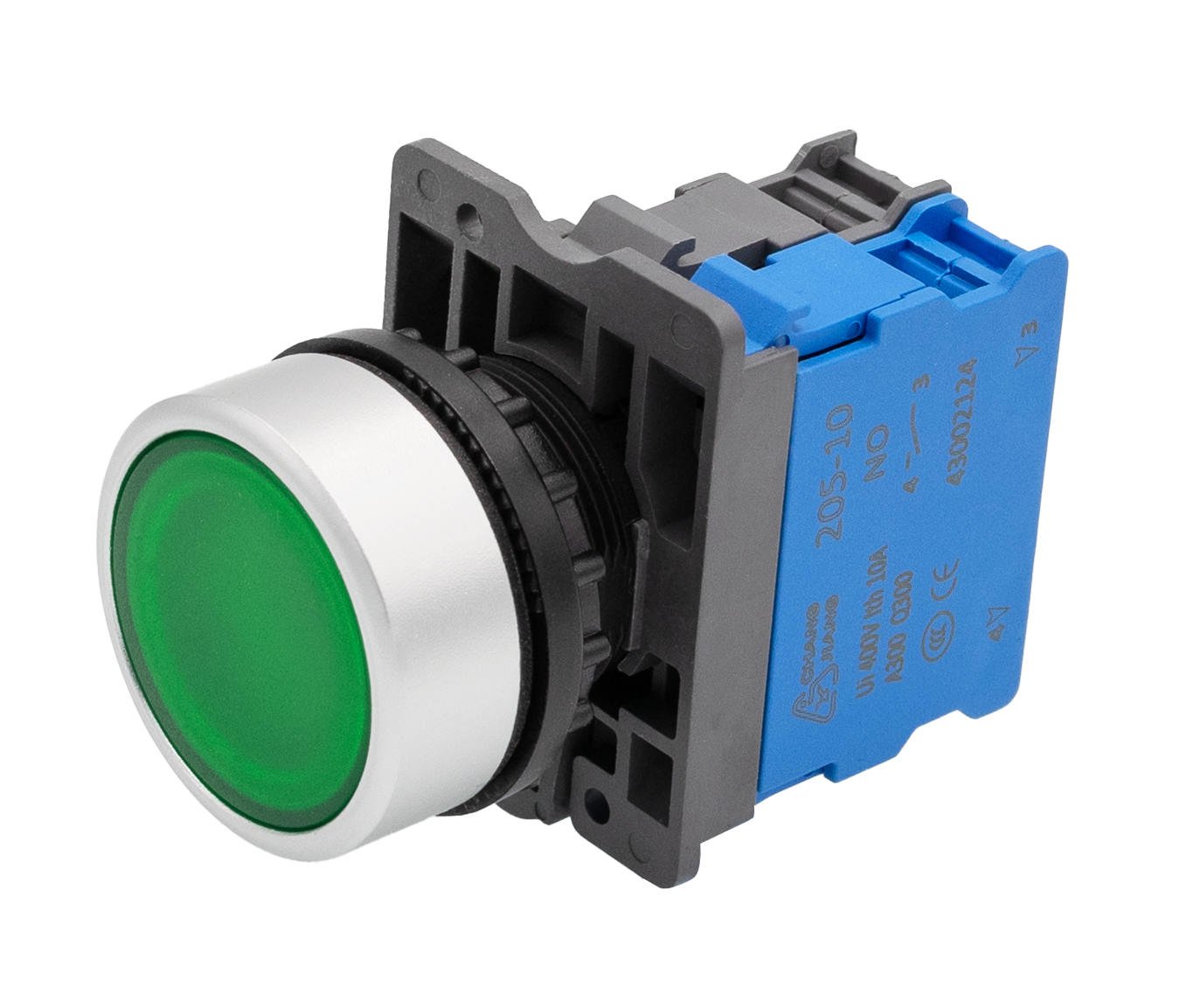

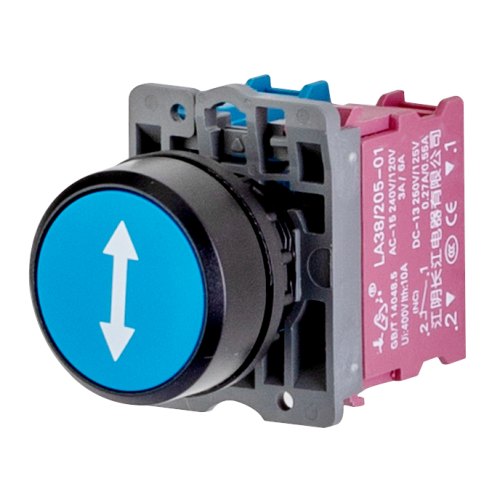

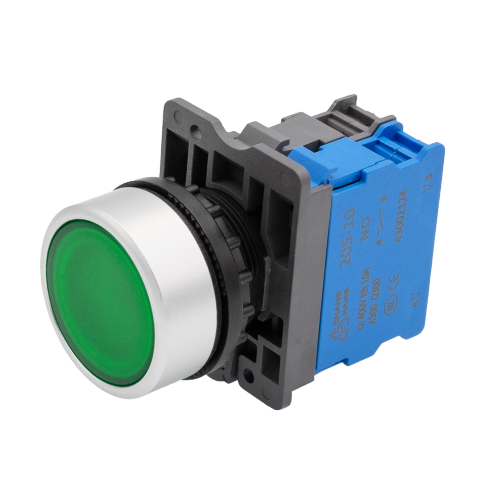

LA38-205 series 22mm Modular contacts Plastic Push Button



LA38-205 series 22mm Modular contacts Plastic Push Button

$2-8.7 /Piece/Pieces

Contact Now

Payment Type: T/T
Incoterm: FOB,EXW
Min. Order: 10 Piece/Pieces
Transportation: Ocean,Air,Express

Description

Product Attributes

Model No.: LA38-205

Packaging & Delivery

Selling Units:	Piece/Pieces

Supply Ability & Additional Information

Transportation: Ocean,Air,Express

Payment Type: T/T

Incoterm: FOB,EXW

Brief Introduction of Push Button Switch, Changeover Switch and Current Transformer

00:45

Product Description

LA38-205 series is a new generation of industrial control Push Button switches, designed for high-density installation and harsh industrial environments. With a sleek flat head (round)

design and a robust 22mm mounting hole diameter, this series offers high operational stability and a modern aesthetic for your control panels.

LA38-205 series push buttons are used in a wide range of industries, including equipment panels, the automation manufacturing sector, the semiconductor industry, and industrial robotics.

Customizable Led Button Switch Designs，illuminated push button switch, with contact configurations tailored to your needs (1 NO, 1 NC, 1 NO + 1 NC, 2 NO, 2 NC,3 NO+3 NC etc.)

LED-Illuminated Button Switch Options: Red, Green, Yellow, White, Blue, Black, and multi-color options available.

Universal AC/DC and dedicated AC designs suitable for various applications, with voltage options including 6V, 12V, 24V, 36V, 48V, 110V, 220V, and 380V, making them suitable for use in different regions.

1.Electrical life: 200,000 cycles

2.Mechanical life: 1,000,000 cycles

3.LED signal lamp lifespan: 30,000 hours

4.Standard IP40 (customizable to IP65)

5.Mounting Hole Diameter：22MM

Certified with CE and CCC, ensuring reliable quality.
