Jiangyin Changjiang Electric Appliance Co., Ltd.
$2.5-9.26 /Piece/Pieces
Model No.: LA38-X*/205
| Selling Units: | Piece/Pieces |
|---|
Transportation: Ocean,Air,Express
Payment Type: T/T
Incoterm: FOB,EXW
Model: LA38-205 (Short Handle)
Brand: Changjiang Electric (Jiangyin Changjiang Electric Appliance Co., Ltd.)

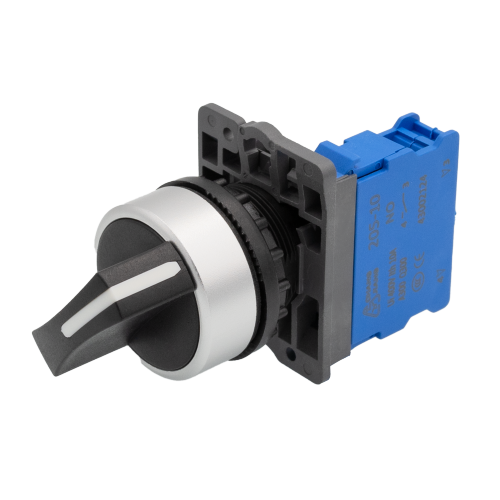

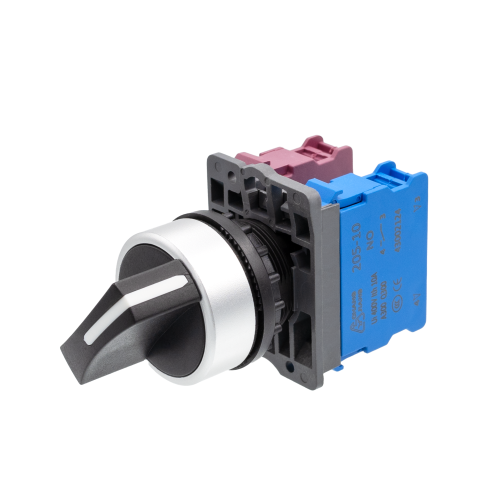

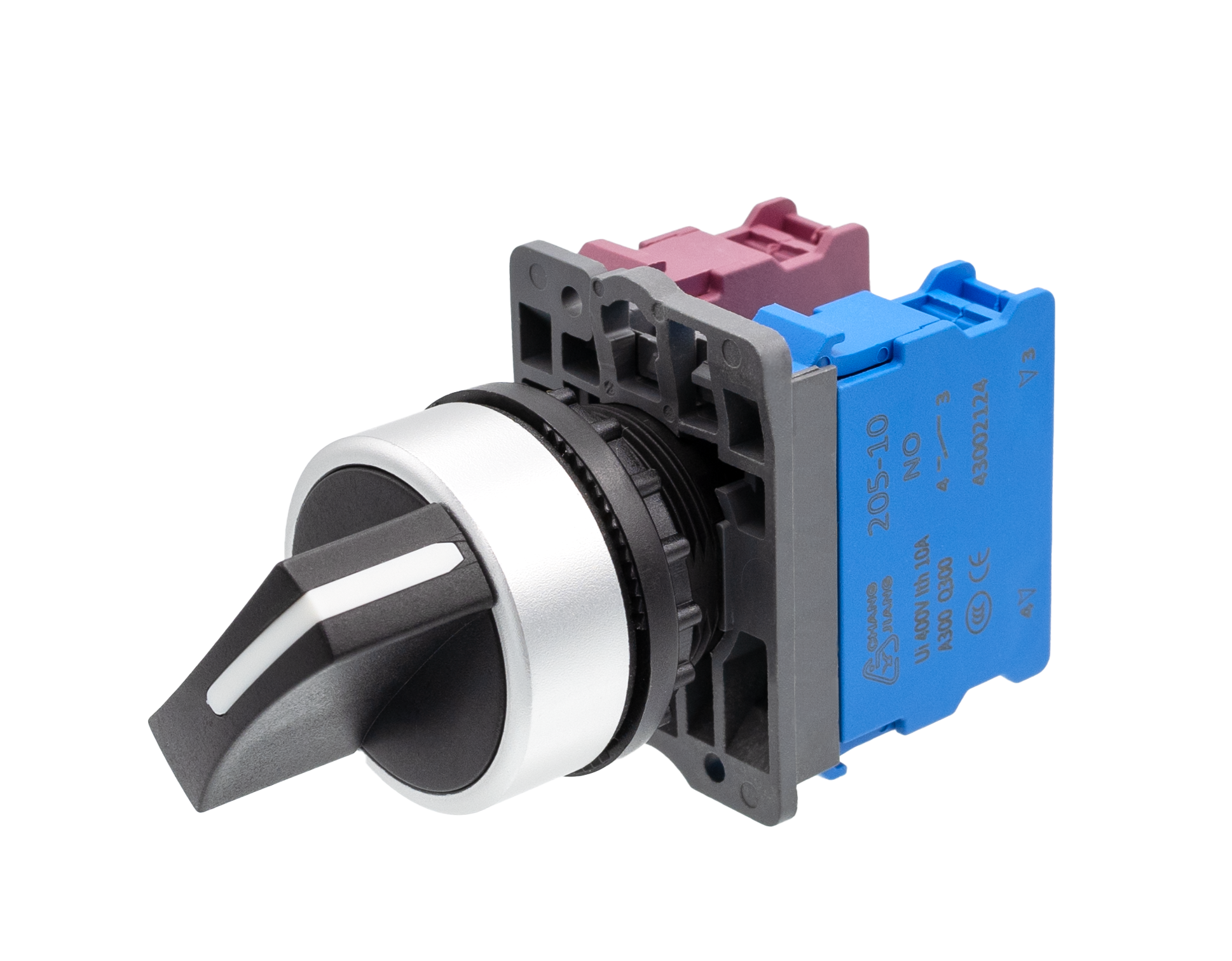

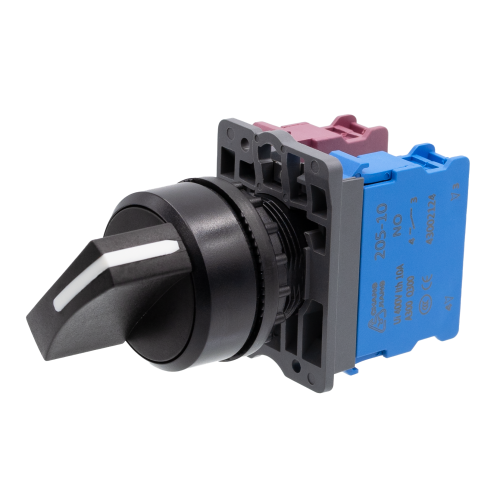

The LA38-205 series short handle selector switch is designed for applications requiring quick, intuitive switching between operational modes. Featuring a low-profile handle (short lever) and a crisp snap-action mechanism, this series minimizes protrusion on the panel while providing clear tactile feedback. It is the ideal choice for industrial machinery, power distribution, and automation control stations where space is at a premium.
| Parameter | Data |
|---|---|
| Mounting Hole Size | Ø22mm (Standard industrial fit) |
| Handle Type | Short Handle / Low Lev |
| Operation Type | Maintained / Latching (Fixed positions) |
| Contact Configuration | 1NO1NC, 2NO2NC (Flexible contact blocks) |
| Rated Insulation Voltage (Ui) | AC 690V |
| Rated Thermal Current (Ith) | 10A |
| Mechanical Life | ≥ 1,000,000 operations |
| Protection Degree | IP40 (Front panel) |
The short handle design is particularly suited for high-density panels and frequent mode switching:
Switch Selectors: Hand/Auto, Local/Remote, Start/Stop.
Industrial Machinery: CNC machines, textile equipment, packaging lines.
Power Systems: Control cabinets and distribution desks.
