Jiangyin Changjiang Electric Appliance Co., Ltd.
$5.88-10 /Piece/Pieces
Model No.: AD11-30ZH、AD11-40ZH
| Selling Units: | Piece/Pieces |
|---|
Transportation: Ocean,Express,Air
Payment Type: T/T
Incoterm: FOB,EXW
Models: AD11-30ZH, AD11-40ZH

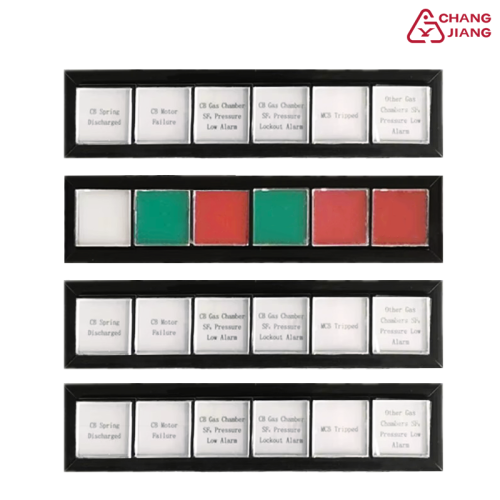

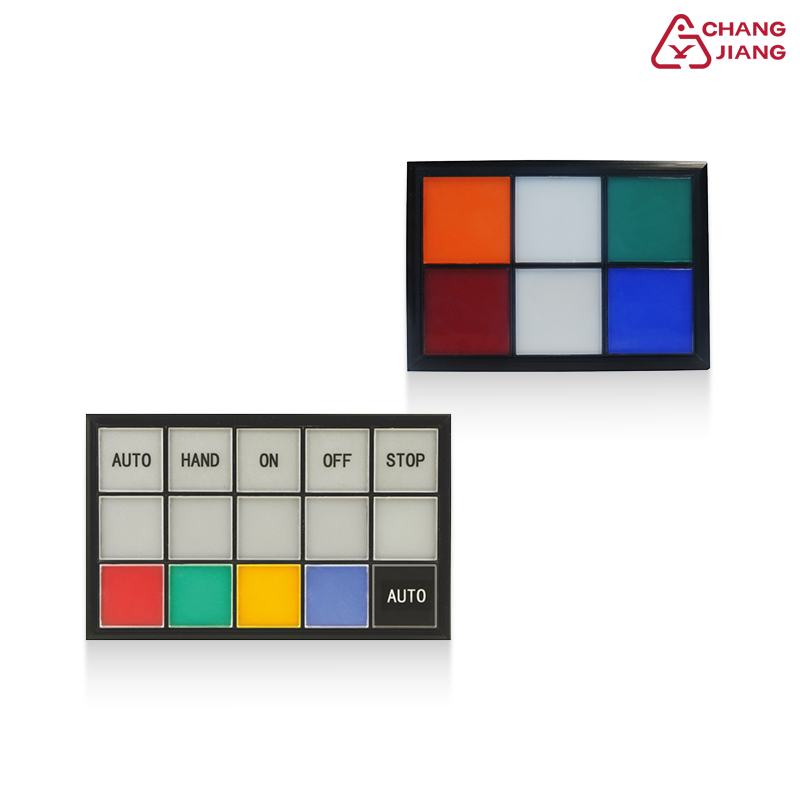

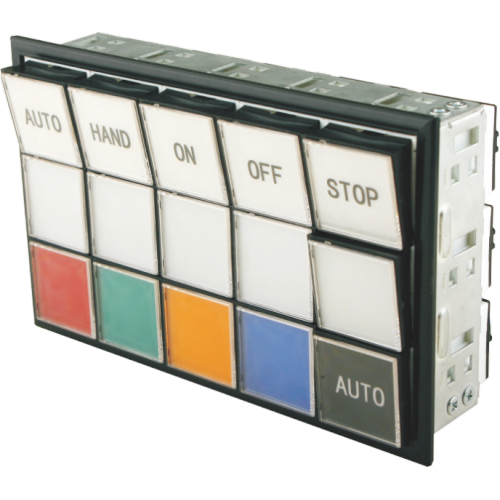

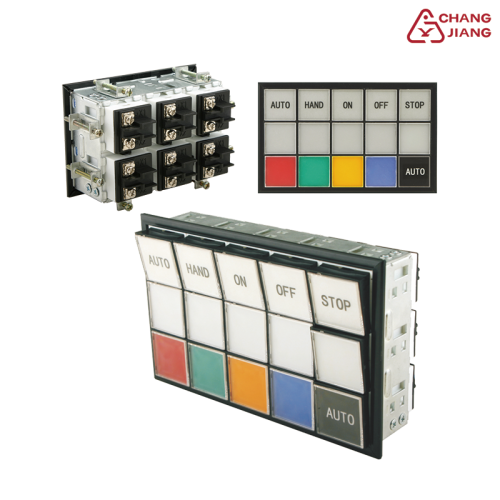

The AD11 Series Combined Type Indicator Lights represent the next generation of industrial signaling devices, combining high-brightness LED technology with an innovative integrated modular design. Available in two form factors—AD11-30ZH (30mm square) and AD11-40ZH (40mm square) —this series offers a versatile solution for panel builders, system integrators, and marine equipment manufacturers.
As a high-performance led panel indicator, the AD11 series delivers exceptional visibility, energy efficiency, and long service life, making it the preferred choice for demanding industrial and marine environments.
Unlike traditional single-unit indicator lights, the AD11 combined type features an integrated multi-light design that allows multiple signal indications within a single panel cutout. This reduces installation time, minimizes panel space requirements, and creates a cleaner, more professional control panel appearance.
| Model | Mounting Size | Configuration | Best For |
|---|---|---|---|
| AD11-30ZH | 30mm x 30mm square | Combined type – multiple indicators in one housing | Compact control panels, small machinery |
| AD11-40ZH | 40mm x 40mm square | Combined type – larger format for high visibility | Marine bridge consoles, large industrial panels |
| Parameter | AD11-30ZH | AD11-40ZH |
|---|---|---|
| Mounting Hole | 30mm x 30mm | 40mm x 40mm |
| Light Source | High-brightness LED | High-brightness LED |
| Rated Voltage | DC24V、48V、110V、220V AC220V、380V | DC24V、48V、110V、220V AC220V、380V |
| Service Life | ≥ 30,000 hours | ≥ 30,000 hours |
| Terminal Type | Screw connection | Screw connection |
| Material | Flame-retardant plastic (UL94 V-0) | Flame-retardant plastic (UL94 V-0) |
| Certifications | CCC, CE, RoHS | CCC, CE, RoHS |
1.AD11-40ZH series is the company's new LED light source combined products.

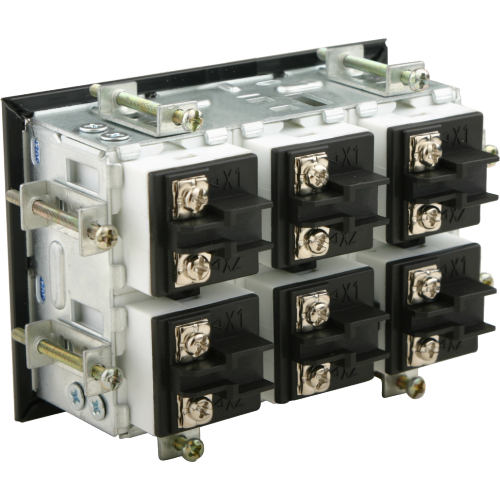

2.The basic unit specifications of the product are 40*40, and the units are tightly combined by inserting blocks.
3.The product is fixed on the metal bracket, stable and reliable.
4.Black decorative frame, beautiful, generous.
5.The plug structure cap can be replaced from the front of the panel.
| Certification/Standard | Compliance |
|---|---|
| CCC | China Compulsory Certification |
| CE | European Conformity |
As a versatile led panel indicator and dustproof indicator light, the AD11 series is widely deployed in:
| Industry | Typical Applications |
|---|---|
| Marine & Shipbuilding | Bridge consoles, engine room panels, navigation light monitors, CCS-certified installations |
| Power & Energy | Switchgear status, transformer monitoring, distribution panels |
| Industrial Machinery | Machine tool status, production line indication, conveyor systems |
| Control Panel Manufacturing | OEM panel building, system integration, retrofit upgrades |
| Transportation | Railway signaling, traffic control, vehicle dashboards |
| Process Industries | Petrochemical, water treatment, food processing |
