Core Definitions & Terminology Included

1. Changeover Switch: General term for this universal rotary transfer switch, used to switch between multiple power supply loops, control circuits and measurement circuits.
2. cam switch: Its core working principle relies on precision cam drive structure to control contact on/off sequence, realizing accurate multi-position circuit conversion.
3. 16A Changeover Switch: Rated conventional heating current: 16A, suitable for low-capacity AC/DC circuit switching scenarios.
4. key lock changeover switch: Equipped with cylinder key locking device; the key can only be inserted and pulled out at designated gear positions, preventing unauthorized misoperation and accidental circuit switching.



   Key Features

   ✅ Blank No-Logo Panel Design



   Front faceplate without factory fixed logo/characters, flexible for custom text, gear symbols and parameter marking, ideal for equipment brand matching.

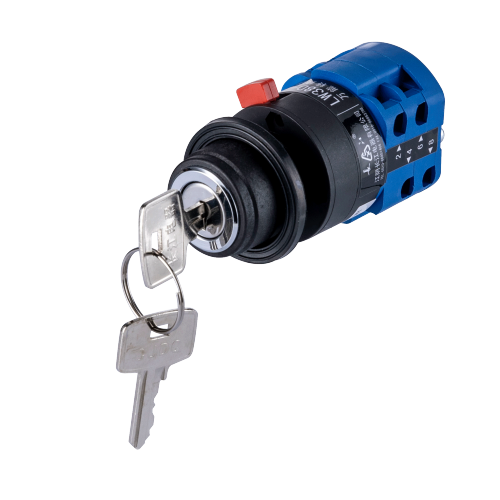

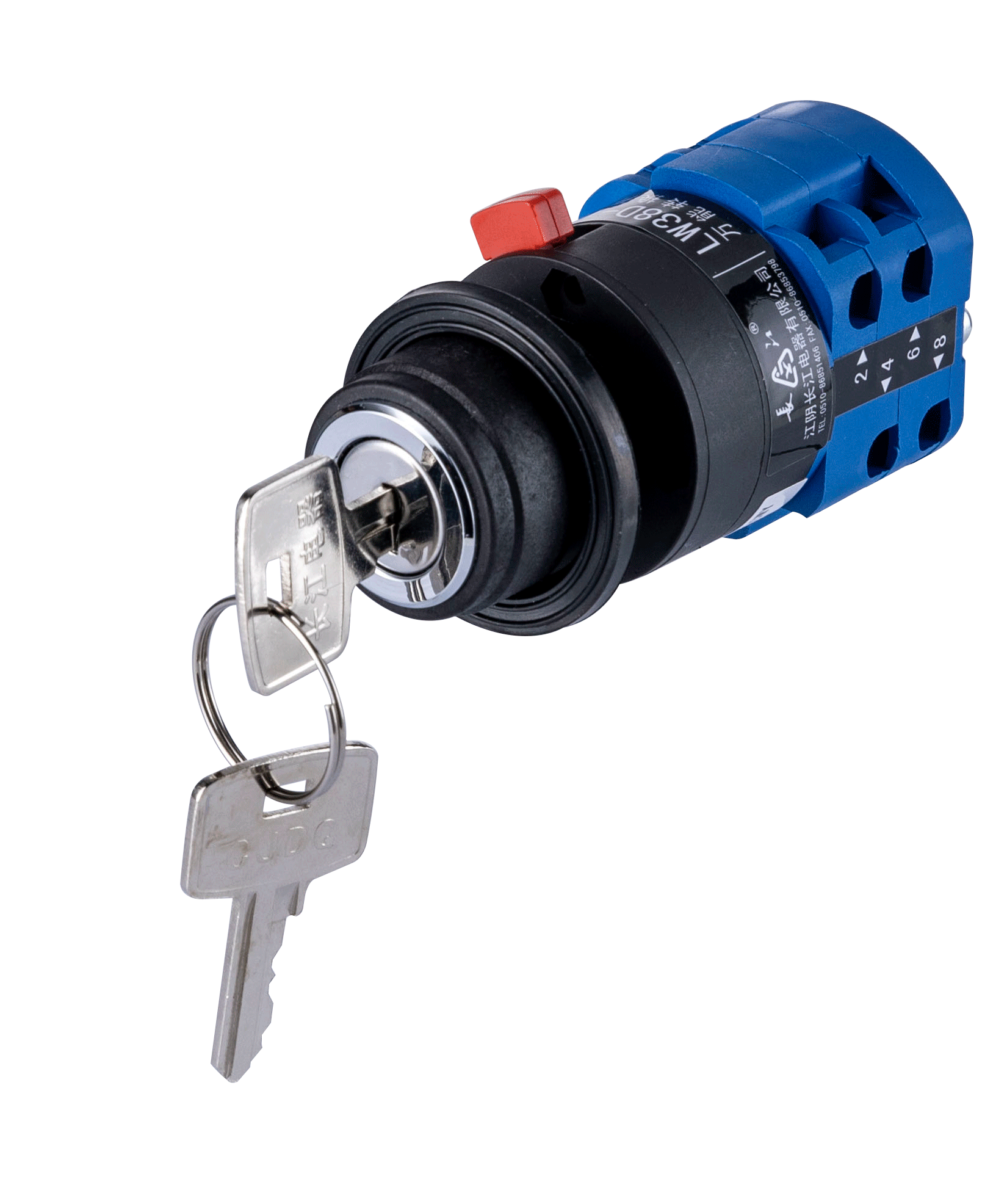

   ✅ Secure Key Lock Mechanism



   Typical key lock changeover switch structure; keys are removable only at locked positions. It effectively avoids accidental rotation by irrelevant personnel, greatly improving electrical operation safety for power distribution cabinets, machine tools and automation equipment.
   ✅ Durable Cam Switch Core



   High-precision cam positioning system ensures crisp switching feel, consistent contact pressure and long mechanical service life; anti-arc silver alloy contacts resist ablation for stable conductive performance.
   ✅ Standard 16A Rated Current



   Classified as standard 16A Changeover Switch, applicable to AC 50/60Hz up to 380V, DC 220V and below low-voltage control loops.
   ✅ Compact Single-Hole Installation



   Ø22mm standard panel mounting hole, easy to install on control cabinets, CNC machine tools, engineering machinery, elevator and power equipment panels; front protection grade reaches IP65 for dustproof & waterproof indoor/outdoor industrial use.
   ✅ Wide Application Scenarios



   Widely used for circuit conversion, voltage/current signal selection, small motor forward/reverse control, power switching and program selection on CNC machine tools, automation production lines, power distribution systems, construction machinery and new energy equipment.



   Main Technical Specifications

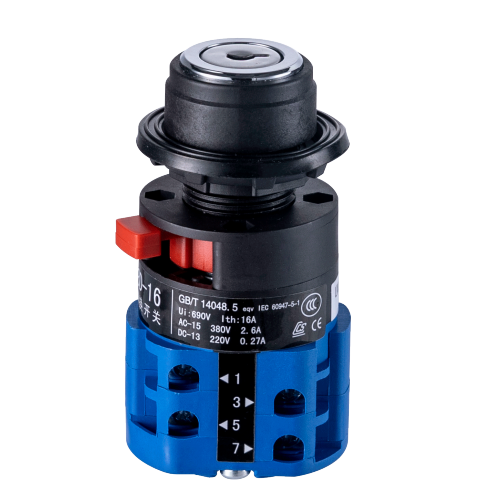

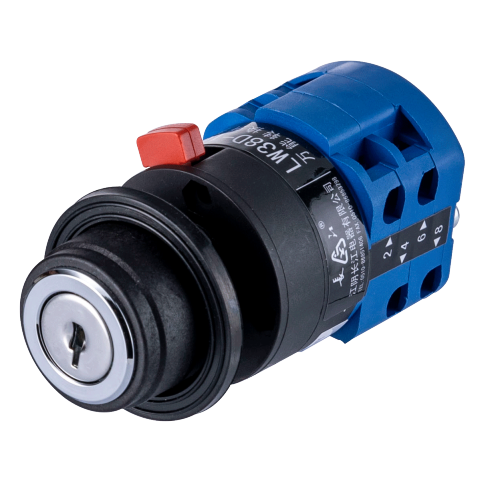

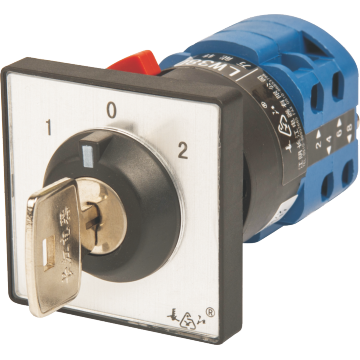

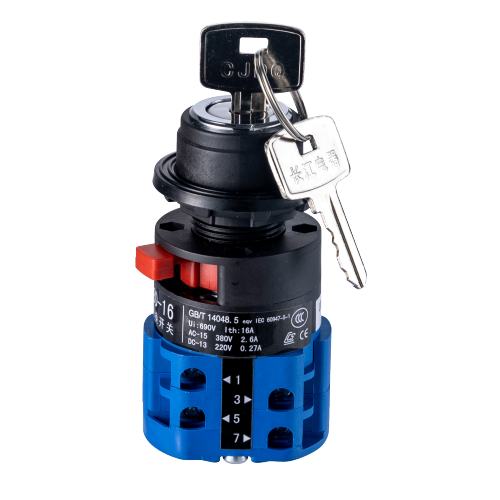

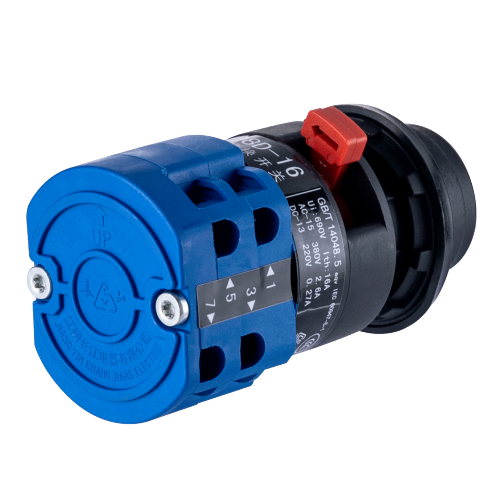

   • Model: LW38D-16/CWY (No Logo Plate Key Type)
   • Type: Universal Cam Changeover Switch / Key Lock Rotary Selector Switch
   • Rated Current: 16A (16A Changeover Switch)
   • Rated Voltage: AC 380V / DC 220V
   • Operating Angle: Optional 30°/45°/60°/90° positioning
   • Contact Section Number: 1~8 sections customizable
   • Protection Class: IP65 (front panel)
   • Compliance Standards: IEC 60947-5, GB/T 14048.5, CE certified
   • Operating Temperature: -25℃ ~ +55℃



     Brand Advantage

     Jiangyin Changjiang Electric has focused on low-voltage master electrical manufacturing for over 30 years. Our LW38 series cam switches enjoy stable quality, complete specifications and strong customization capability, serving global industrial automation, power, engineering machinery and transportation industries with reliable rotary switching solutions.



     Purchase & Custom Service

     • Custom panel text, gear positions, key codes and contact layouts available
     • Bulk wholesale supported
     • Long-term after-sales warranty & technical support provided
