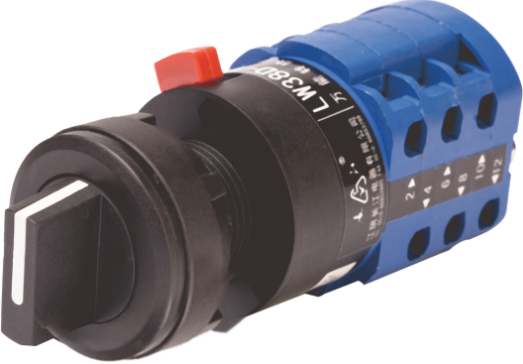

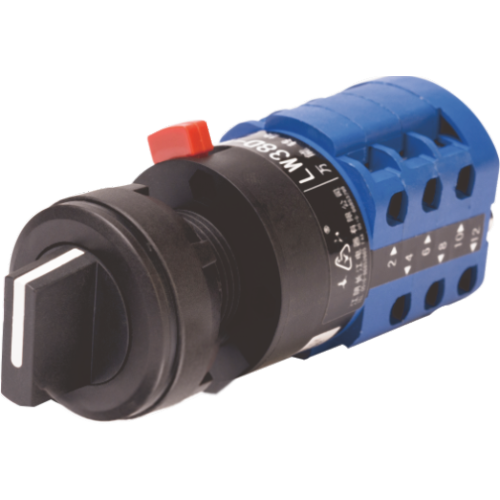

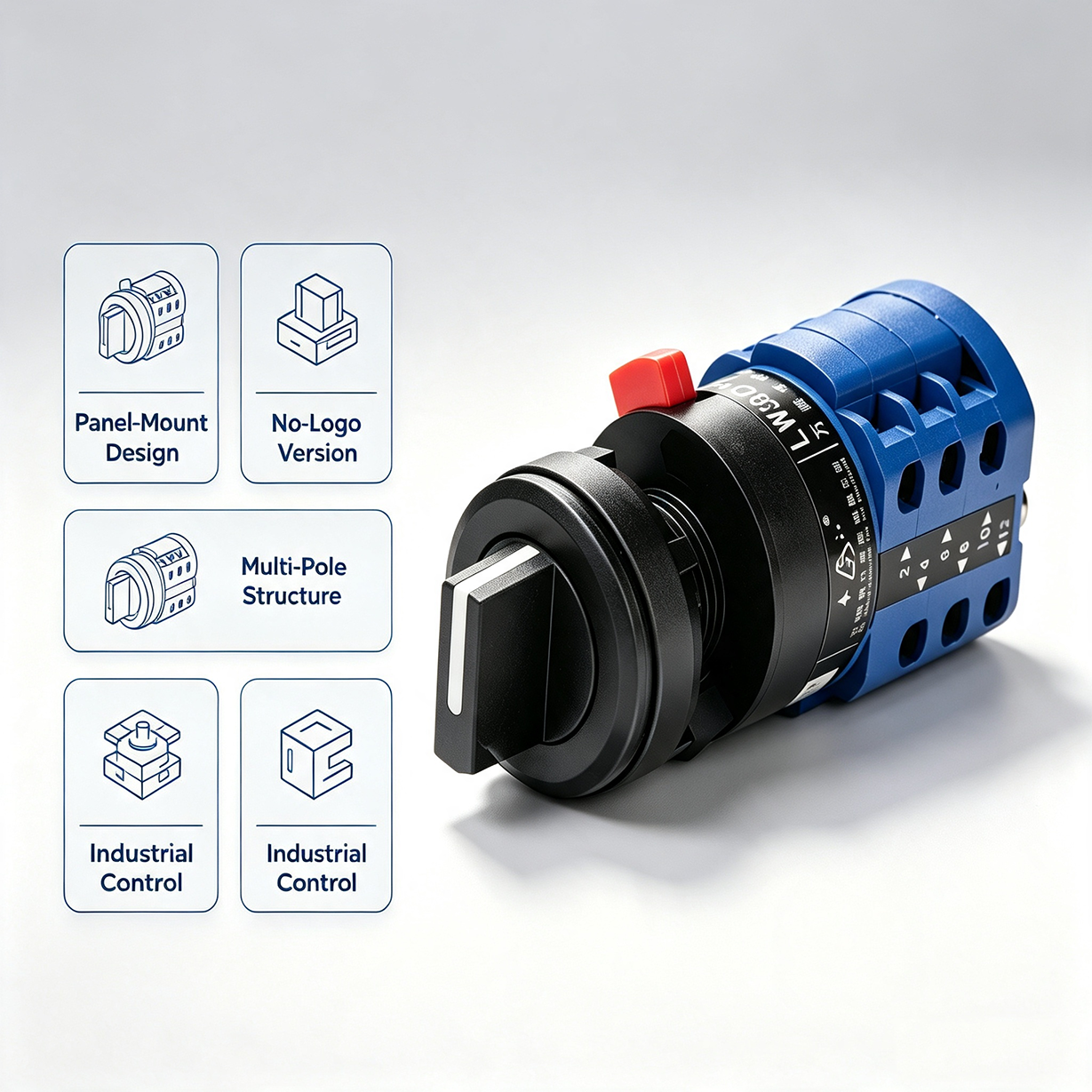

LW38D‑16/CM Flush‑mount No‑logo Plate‑type Universal Change‑over Switch

Meta Title：LW38D‑16/CM Universal Change‑over Switch | 16A Flush‑mount cam switch‑Jiangyin Changjiang Electric

Meta Description：LW38D‑16/CM flush‑mount no‑logo plate‑type universal change‑over switch, 16A, front‑panel IP65 protection, compliant with GB/T 14048.5, for cabinet control circuit switching.

LW38D‑16/CM is a flush‑mount no‑logo plate‑type universal change‑over switch (cam switch) developed by Jiangyin Changjiang Electric Appliance Co., Ltd. Designed for panel flush installation without brand marking on front plate. It complies with GB/T 14048.5 standard, widely used for circuit switching and signal selection in control cabinets, machine‑tool and industrial automation equipment.

Key Features

• ✅ Flush‑mount plate‑type, no‑logo version：Panel‑flush installation, no logo/nameplate on front face for OEM project requirements
• ✅ High front‑panel protection：IP65 protection degree for front panel
• ✅ Strong dielectric performance：Rated insulation voltage Ui 690V, power frequency withstand voltage 1.89kV
• ✅ Long service life：Electrical life up to 200,000 cycles (AC‑15); mechanical life up to 300,000 cycles
• ✅ Reliable performance under harsh conditions：Works at altitude ≤2000m, pollution degree 3, over‑voltage category Ⅲ
• ✅ Wide application：Suitable for control cabinets, machine‑tools, power‑distribution and signal‑switching circuits

  Technical Specifications

  表格

  Item	Parameter
  Model	LW38D‑16/CM
  Product Type	Universal Change‑over Switch (Cam Switch)
  Mounting Type	Flush‑mount Plate‑type, No‑logo
  Compliance Standard	GB/T 14048.5Alibaba.co...
  Rated Insulation Voltage (Ui)	690 V
  Front‑panel Protection	IP65
  Power‑frequency Withstand Voltage	1.89 kV
  Conventional Thermal Current (Ith)	16 A
  Utilization Category AC‑15	380V / 2.6A
  Utilization Category DC‑13	220V / 0.27A
  Electrical Life(AC‑15 / DC‑13)	200,000 / 100,000 operations
  Mechanical Life	300,000 operations
  Max Operating Altitude	≤2000 m
  Operating Ambient Temperature	‑25℃ ~ +55℃
  Storage Temperature	‑40℃ ~ +70℃
  Relative Humidity	≤90%
  Pollution Degree / Over‑voltage Category	Pollution degree 3, Category Ⅲ

  Application

  Control cabinets, machine‑tool equipment, engineering machinery, power‑distribution boxes, control‑circuit switching, signal selection, small‑capacity motor manual control.
