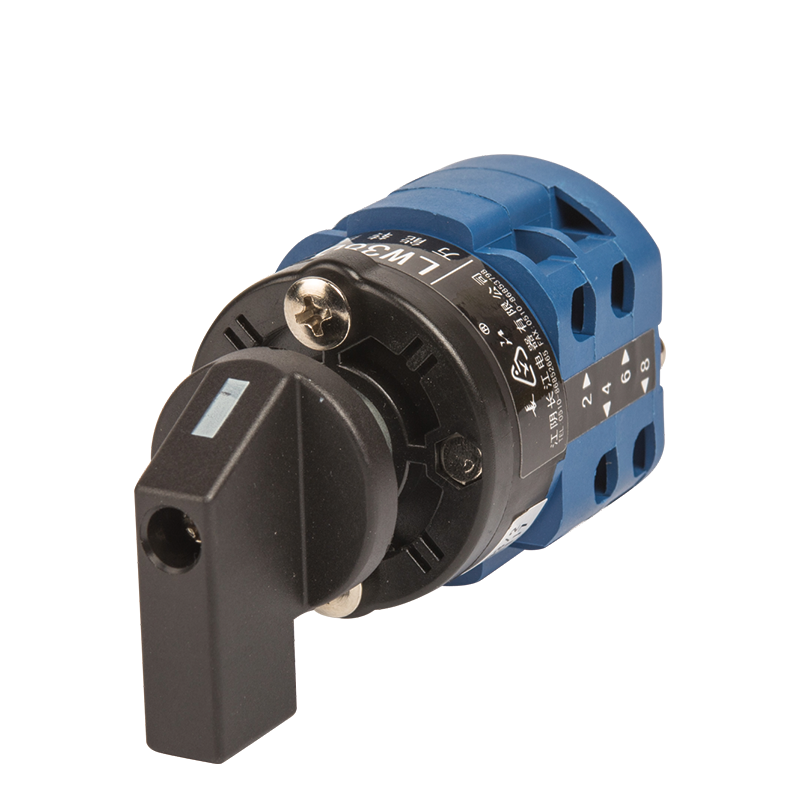

LW38D Panel-less Cam Switch

Product Overview

LW38D‑16/W Series cam switch, manufactured by Jiangyin Changjiang Electric Co., Ltd., is 16A Changeover Switch designed for cabinet internal installation. Without front operating panel, this compact unit realizes circuit conversion, signal switching and control function inside electrical cabinets, widely applied in machinery, power distribution panels and industrial control systems.

Built with high‑strength insulating housing and reliable contact system, the switch delivers stable performance under heavy‑duty industrial environment. Modular multi‑pole structure supports flexible circuit combination to match diversified onsite control demands.

Key Specifications

• Model: LW38D‑16/W
• Rated Insulation Voltage (Ui): 690V
• Conventional Thermal Current: 16A
• Mechanical Endurance: 300,000 operations
• Electrical Endurance: 300,000 operations
• Pollution Degree: 3
• Installation Category: Ⅲ
• Compliance Standard: GB/T 14048.5
• Operating Ambient Temperature: ‑25℃ ~ +55℃
• Storage Temperature: ‑40℃ ~ +70℃
• Max Altitude for Application: ≤2000 m

Core Features

✅ Panel‑Free Structure No front mounting panel required, saves cabinet space, for inner‑cabinet installation, ideal for compact cabinet layout.

✅ Modular Multi‑pole Design Flexible pole‑count configuration, customizable contact sequences to satisfy various circuit switching requirements.

✅ Robust Insulation Performance High‑quality blue insulating housing, rated insulation voltage up to 690V, ensures safety for industrial power control.

✅ Long Service Life Up to 300 000 mechanical & electrical operations, stable contact performance, reduces equipment maintenance frequency.

✅ Wide Application Compatibility Suitable for machine tools, engineering machinery auxiliary control, distribution cabinet internal circuit switching and signal transfer.

Application Scenarios

• Internal circuit switching of low‑voltage distribution cabinets
• Machine tool & industrial equipment control circuits
• Auxiliary control for engineering machinery
• Signal conversion for automation systems

Company Info

Jiangyin Changjiang Electric Co., Ltd. Specializes in industrial control components including universal change‑over switches, indicator lights, push‑buttons and emergency stop switches, supplying reliable electrical solutions for global industrial clients.
